Usage

Embedding in a figure

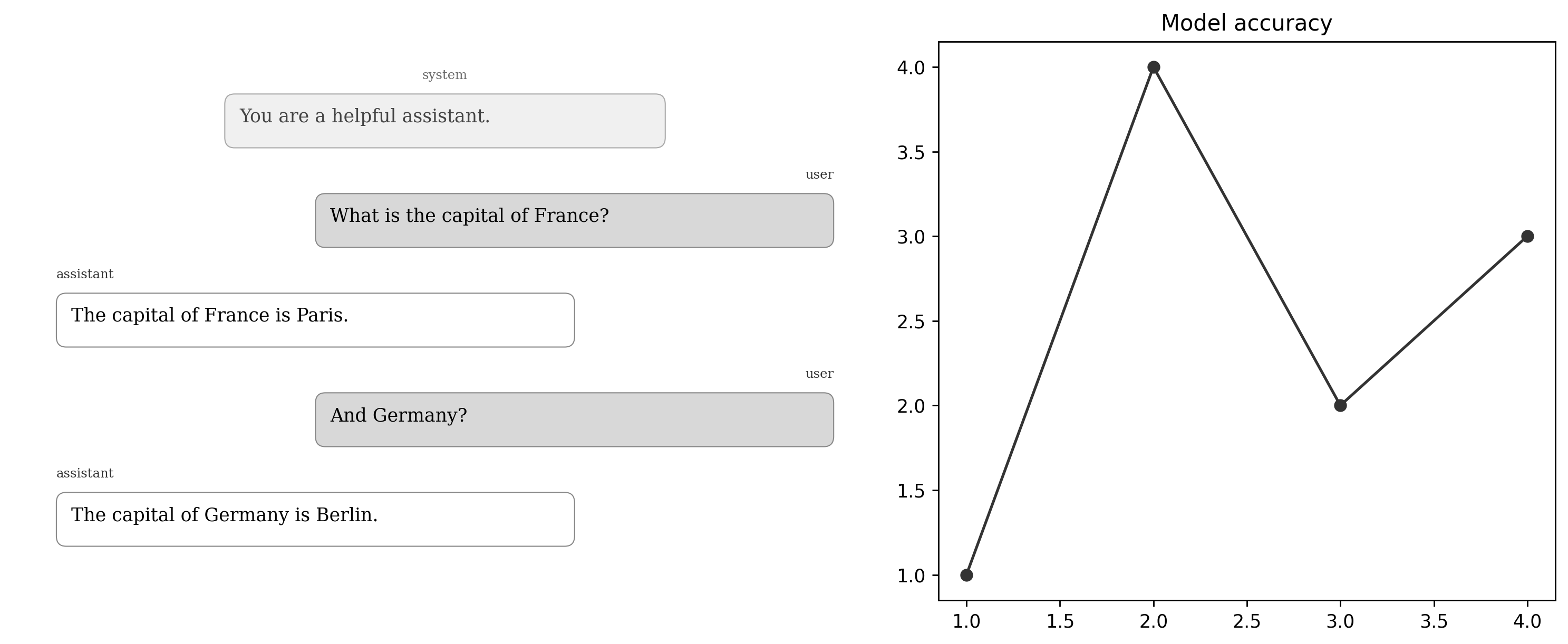

The primary use case — a chat transcript as one panel of a multi-axis figure:

import matplotlib.pyplot as plt
import yapplotlib

fig, axes = plt.subplots(1, 2, figsize=(12, 5),
                         gridspec_kw={'width_ratios': [1.4, 1]})
axes[0].chatplot(messages, style='paper')
axes[1].plot(x, y)
plt.tight_layout()

Message format

Each message is a plain dict:

{
    'role':      'user',                         # required
    'content':   'Hello!',                       # required
    'name':      'Alice',                        # optional — display name override
    'timestamp': '10:04 AM',                     # optional — shown when show_timestamps=True
    'style':     {'user_facecolor': '#FFD700'},  # optional — per-message style override
}

Supported roles: 'user', 'assistant', 'system'. Aliases 'human', 'ai', 'bot', and 'model' are also accepted.

Options

Parameter	Default	Description
style	'default'	Theme name or style dict
bubble_width	0.6	Max bubble width as fraction of axes width
show_names	True	Show sender name labels
show_timestamps	False	Show timestamp strings
show_avatars	False	Show circular avatar badges with initials
sender_align	None	Dict mapping role → 'left' / 'right' / 'center'
font_size	theme	Font size in points
line_spacing	1.4	Line spacing multiplier
bubble_spacing	0.6	Gap between bubbles (in line-heights)
pad	0.05	Left/right edge padding (fraction of axes width)

Style customisation

Partial style dicts merge with a named base theme:

my_style = {**yapplotlib.themes['paper'], 'font_size': 11, 'user_facecolor': '#D0E8FF'}
fig, ax = yapplotlib.chatplot(messages, style=my_style)

Per-message overrides:

messages[2]['style'] = {'user_facecolor': '#FFD700'}

ChatPlot object

chatplot() returns a ChatPlot object:

thread = ax.chatplot(messages)
thread.get_children()  # list of all managed matplotlib artists
thread.redraw()        # re-layout (e.g. after resizing)
thread.disconnect()    # remove canvas event callbacks

rcParams

Global defaults can be overridden via matplotlib.rcParams:

import matplotlib
matplotlib.rcParams['yapplotlib.style']        = 'paper'
matplotlib.rcParams['yapplotlib.bubble_width'] = 0.65
matplotlib.rcParams['yapplotlib.show_names']   = False

Available keys: yapplotlib.style, yapplotlib.bubble_width, yapplotlib.show_names, yapplotlib.show_timestamps, yapplotlib.show_avatars, yapplotlib.font_size, yapplotlib.bubble_spacing, yapplotlib.line_spacing, yapplotlib.pad.

mplstyle integration

import matplotlib.pyplot as plt

with plt.style.context('yapplotlib.paper'):
    fig, ax = yapplotlib.chatplot(messages)

Available styles: yapplotlib.paper, yapplotlib.dark.
